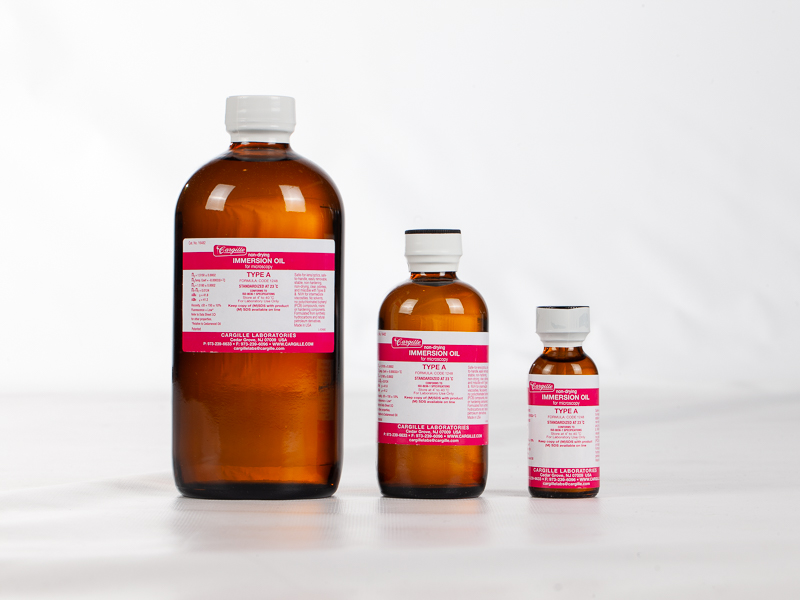

Immersion Oil Type A

Cat #: 16482
Refractive Index @ 23° C:
F Line (486.1 nm) – 1.5239
e Line (546.1 nm) – 1.5180
D Line (589.3 nm) – 1.5150
C Line (656.3 nm) – 1.5114
Viscosity: 150 cSt ± 10% @ 23°C (Low)

Immersion Oil Type B

Cat #: 16484
Refractive Index @ 23° C:
F Line (486.1 nm) – 1.5236
e Line (546.1 nm) – 1.5180
D Line (589.3 nm) – 1.5150
C Line (656.3 nm) – 1.5116
Viscosity: 1250 cSt ± 10% @ 23°C (High)

• General purpose Immersion oil
• Higher Viscosity version of Type A

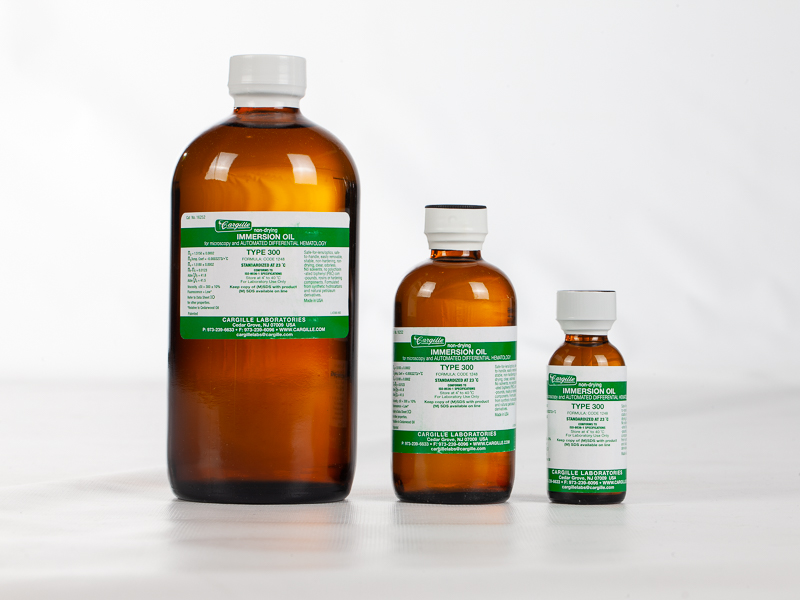

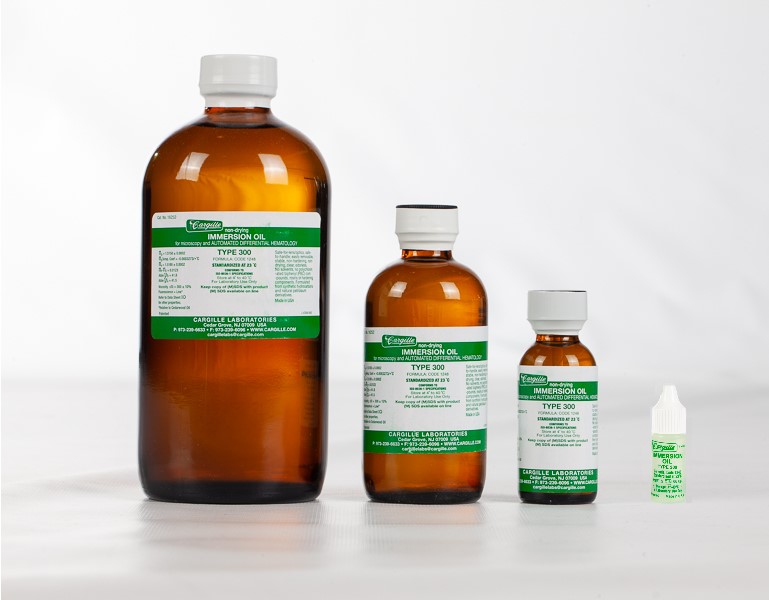

Immersion Oil Type 300

Cat #: 16252
Refractive Index @ 23° C:
F Line (486.1 nm) – 1.5238
e Line (546.1 nm) – 1.5180
D Line (589.3 nm) – 1.5150
C Line (656.3 nm) – 1.5115
Viscosity: 300 cSt ± 10% @ 23°C (Medium)

• For use with automated hematology systems

Immersion Oil Type 37

Cat #: 16237
Refractive Index @ 37° C:
F Line (486.1 nm) – 1.5238
e Line (546.1 nm) – 1.5180
D Line (589.3 nm) – 1.5150
C Line (656.3 nm) – 1.5115
Viscosity: 1250 cSt ± 10% @ 37°C (High)

• General purpose Immersion Oil for use at 37°C

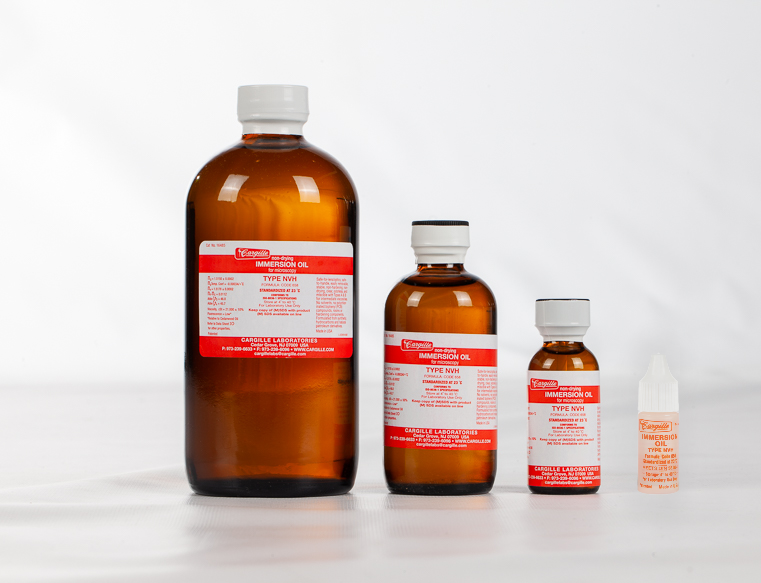

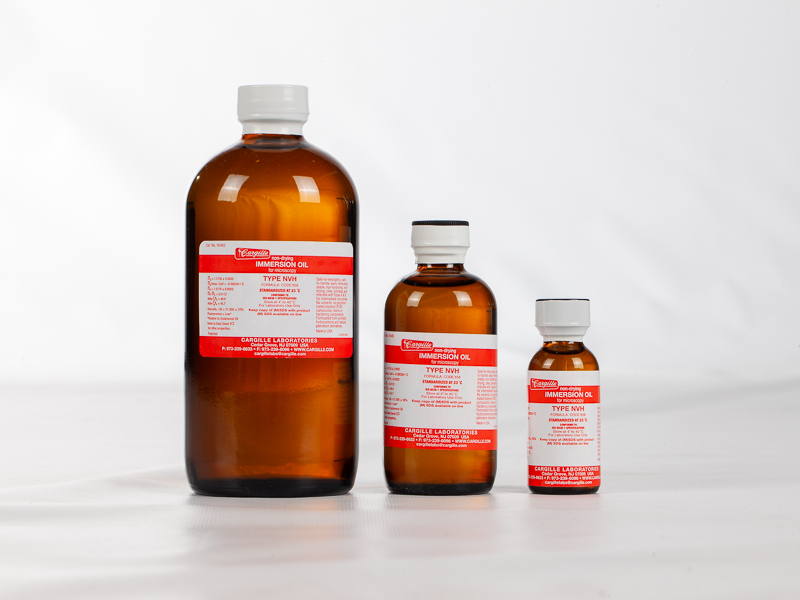

Immersion Oil Type NVH

Cat #: 16485
Refractive Index @ 23° C:
F Line (486.1 nm) – 1.5230
e Line (546.1 nm) – 1.5178
D Line (589.3 nm) – 1.5150
C Line (656.3 nm) – 1.5118
Viscosity: 21,000 cSt ± 10% @ 23°C (Very High)

• Used to bridge larger gaps between cover glass and objective or between slide and condenser

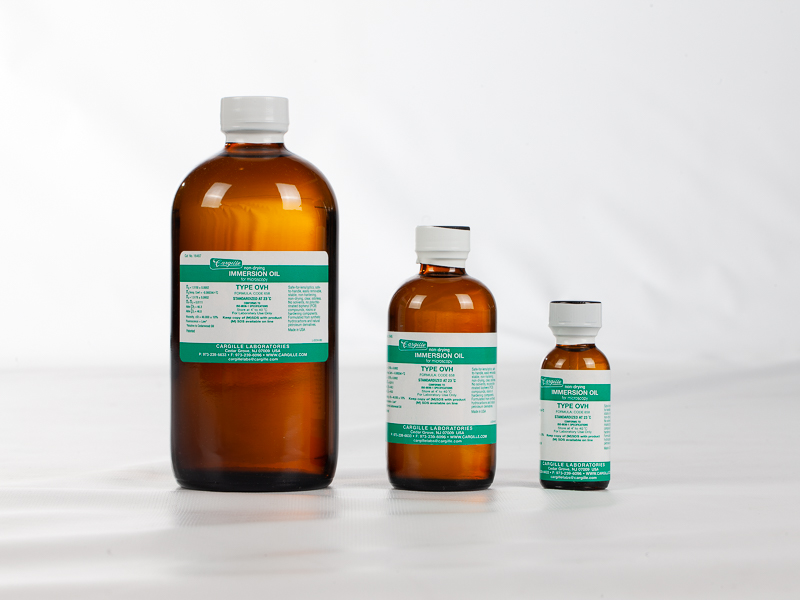

Immersion Oil Type OVH

Cat #: 16487
Refractive Index @ 23° C:
F Line (486.1 nm) – 1.5230
e Line (546.1 nm) – 1.5178
D Line (589.3 nm) – 1.5150
C Line (656.3 nm) – 1.5118
Viscosity: 46,000 cSt ± 10% @ 23°C (Very High)

• Used to bridge larger gaps between cover glass and objective or between slide and condenser
• Higher Viscosity version of Type NVH

Immersion Oil Type Af

Cat #: 16491
Refractive Index @ 23° C:
F Line (486.1 nm) –
e Line (546.1 nm) –
D Line (589.3 nm) –
C Line (656.3 nm) –
Viscosity: 150 cSt ± 10% @ 23°C

• Coming Soon

Immersion Oil Type Bf

Cat #: 16493
Refractive Index @ 23° C:
F Line (486.1 nm) –
e Line (546.1 nm) –
D Line (589.3 nm) –
C Line (656.3 nm) –
Viscosity: 1250 cSt ± 10% @ 23°C

• Coming Soon

Immersion Oil Type 300f

Cat #: 16250
Refractive Index @ 23° C:
F Line (486.1 nm) –
e Line (546.1 nm) –
D Line (589.3 nm) –
C Line (656.3 nm) –
Viscosity: 300 cSt ± 10% @ 23°C

• Coming Soon

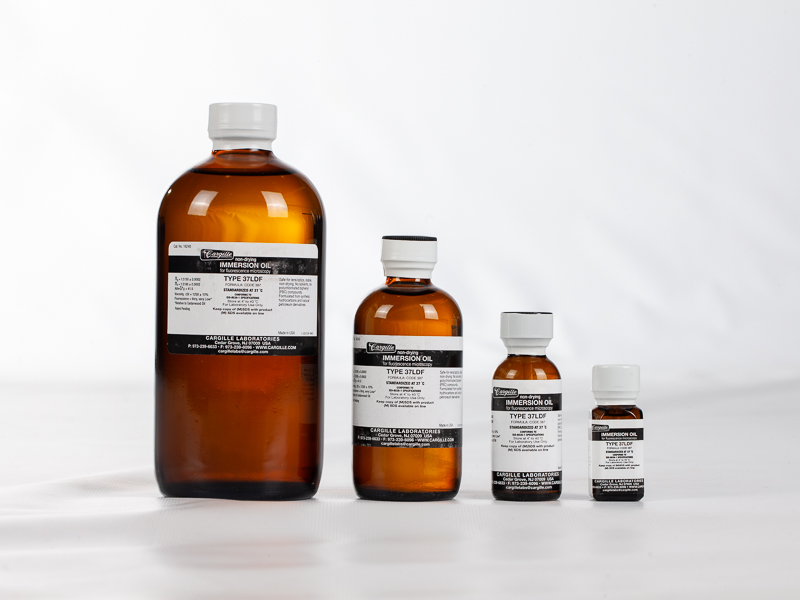

Immersion Oil Type 37LDF

Cat #: 16240
Refractive Index @ 37° C:
F Line (486.1 nm) – 1.5239
e Line (546.1 nm) – 1.5181
D Line (589.3 nm) – 1.5150
C Line (656.3 nm) – 1.5115
Viscosity: 1250 cSt ± 10% @ 37°C (High)

• Low fluorescence Immersion Oil for use at 37°C
• Distinct odor

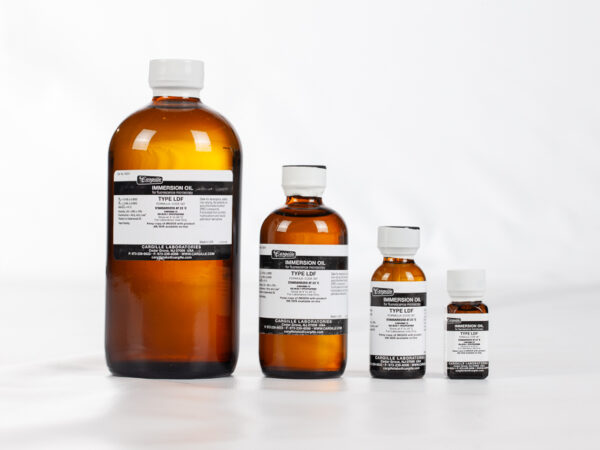

Immersion Oil Type LDF

Cat #: 16241
Refractive Index @ 23° C:
F Line (486.1 nm) – 1.5239
e Line (546.1 nm) – 1.5181
D Line (589.3 nm) – 1.5150
C Line (656.3 nm) – 1.5115
Viscosity: 500 cSt ± 10% @ 23°C (Medium)

• Low Fluorescence Immersion Oil for use at 23°C
• Distinct odor

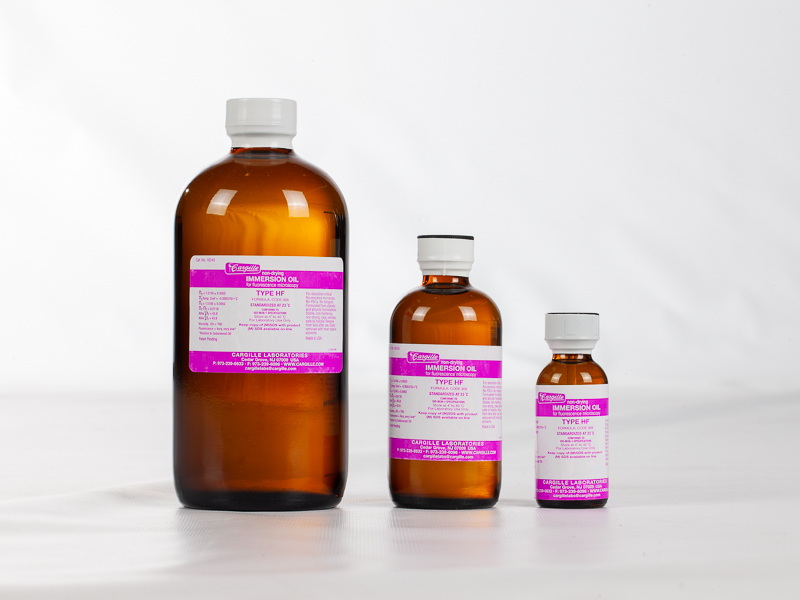

Immersion Oil Type HF

Cat #: 16245
Refractive Index @ 23° C:
F Line (486.1 nm) – 1.5234
e Line (546.1 nm) – 1.5180
D Line (589.3 nm) – 1.5150
C Line (656.3 nm) – 1.5117
Viscosity: 700 cSt ± 10% @ 23°C (Medium)

• Low Fluorescence Immersion Oil for use at 23°C
• Slightly more fluorescent than Type LDF
• No odor

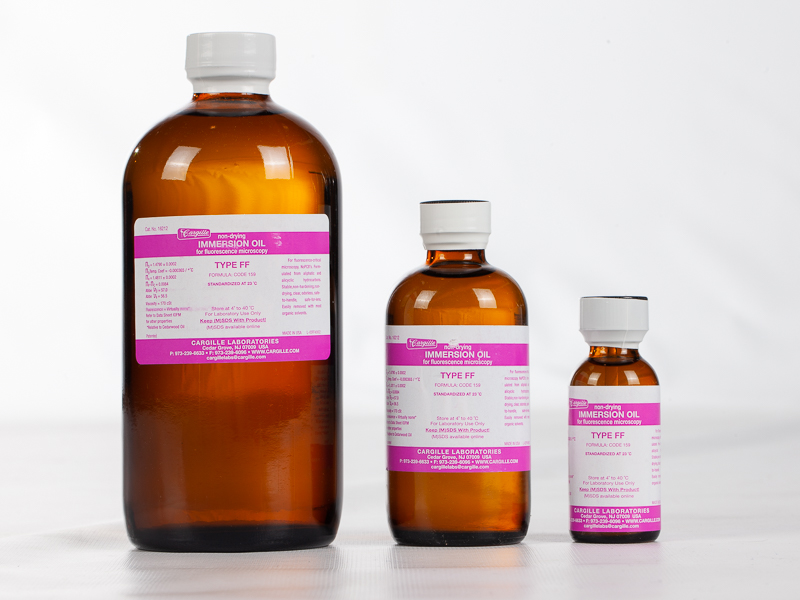

Immersion Oil Type FF

Cat #: 16212
Refractive Index @ 23° C:
F Line (486.1 nm) – 1.4850
e Line (546.1 nm) – 1.4811
D Line (589.3 nm) – 1.4790
C Line (656.3 nm) – 1.4766
Viscosity: 170 cSt ± 10% @ 23°C (Low)

• Nearly fluorescence-free Immersion Oil
• Not ISO Compliant

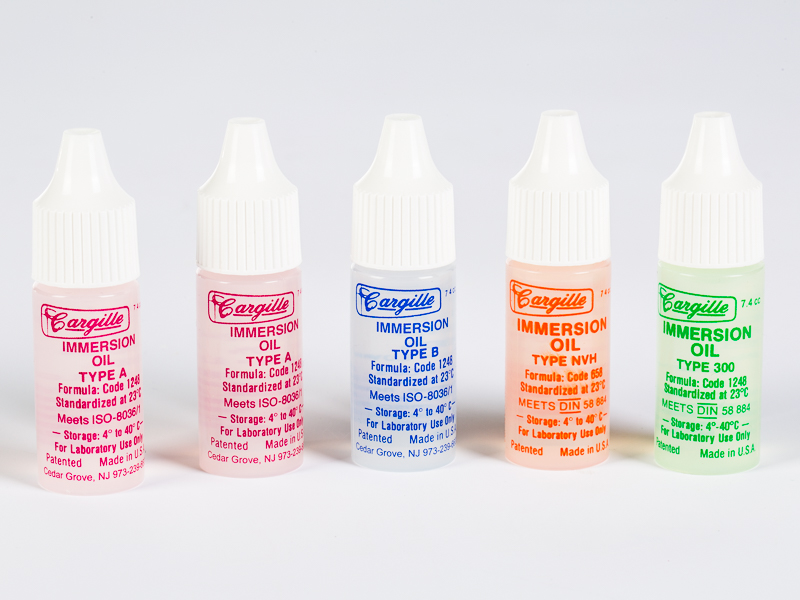

Immersion Oil Sampler (5) Poly-Pak

2ea: Type A
1ea: Type 300, B, NVH
Cat #: 16490

• (2) 1/4 fl. oz Type A Immersion Oils
• 1/4 fl. oz Type B Immersion Oil
• 1/4 fl. oz Type 300 Immersion Oil
• 1/4 fl. oz Type NVH Immersion Oil
